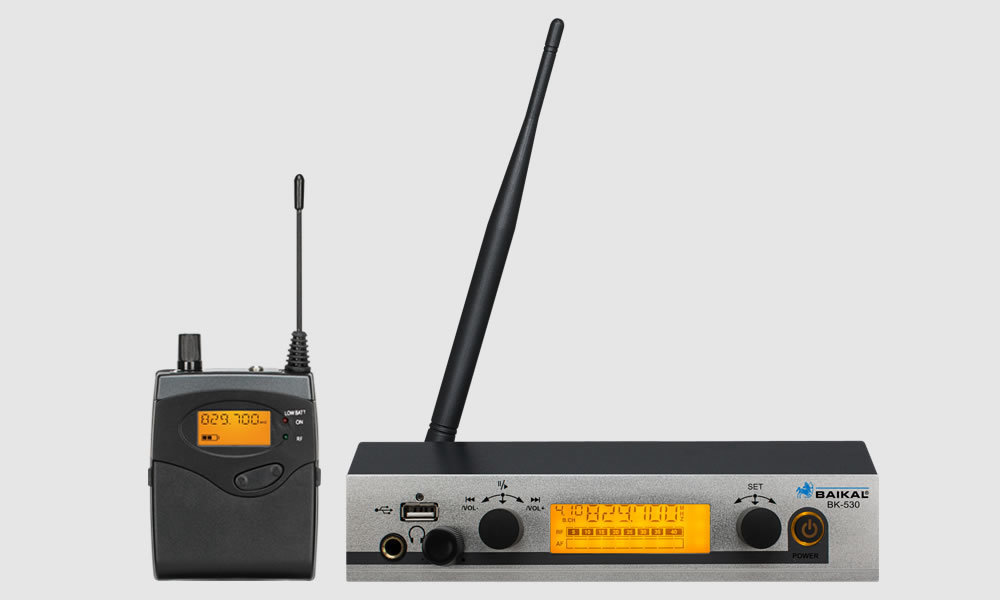

BK-530 舞台返听系统
This wireless Ear-monitor System is used in stage performance and sound broadcast which can replace traditional complex sound monitoring equipment, achieve admirable listening effect.
With using the latest high frequency transmission and audio signal dynamic processing technology, also improve the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again.
| SPECIFICATION | BK-530 RECEIVER |
|---|---|
| Oscillation mode | PLL synthesized |
| Frequency range | UHF500~950MHz |
| Frequency interval | 25MHz |
| Preset Channel | 96channels separately set 6 groups |
| Operate mode | manual adjust |
| Receiving mode | single tuning |
| Frequency response | 80Hz~15KHz±3dB |
| Output power (32Ω) | 2X35mw@1KHZ |
| Earphone load impedance | ≥16Ω |
| Output socket | φ3.5mm stereo earphone socket |
| Power box | batteries AAX2 |
| SPECIFICATION | BK-530 TRANSMITTER |
|---|---|
| Case specification | standard 1U |
| Case material | metal panel |
| Frequency range | UHF500~950MHz |
| Frequency interval | 25MHz |
| Preset Channel | 96channels separately set 6 groups |
| Transmit output power | 100mW(50Ω) |
| AF input | XLR, φ6.3mmjack |
| Earphone output | φ6.3mm stereophonic socket |
| Earphone load impedance | ≥16Ω |
| Current consumption | DC 12V/250mA |
| Antenna socket | TNC socket (50Ω) |
