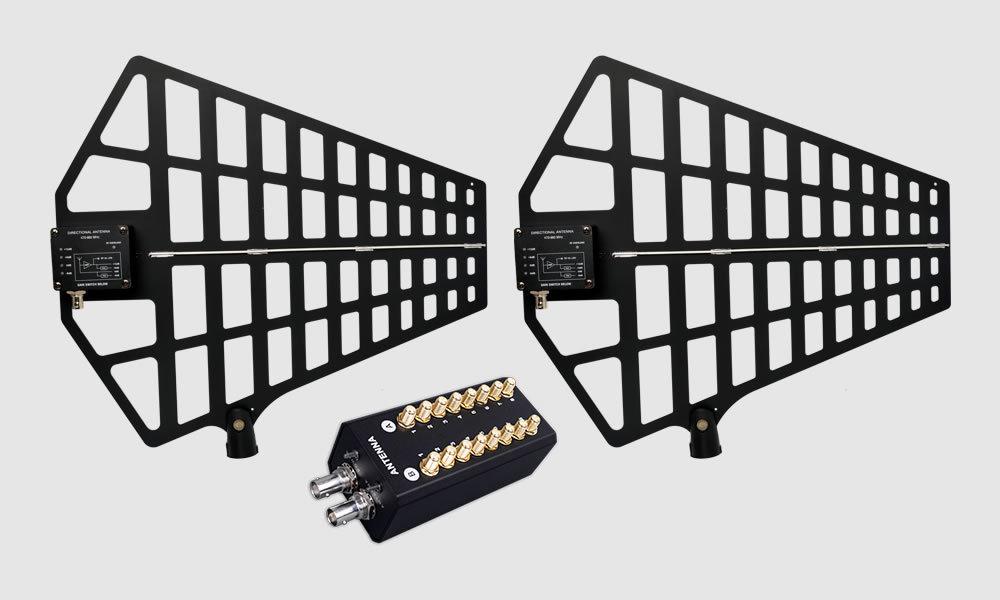

PS28 天线放大器
This machine is a UHF antenna distribution system with amplification function,It can expand the function of a Wireless microphone system by splitting a pair of antennas into a wireless receiver.
It can also amplify RF signals to compensate.
| Technology index of the antenna distributor | |
|---|---|
| Carrier frequency band | 500-950MHz |
| Connector Type of the antenna input | BNC |
| Connector Type of the antenna output | SMA |
| Impedence | 50Ω |
| Maximum input signal | +13dB |
| Output external power supply | DC 12V 120mA |
| Technology index of active directional antenna | |
|---|---|
| Antenna Type | Log periodic dipole array antenna |
| RF Frequency band | 500-950MHz |
| Working voltage | 10V DC |
| Impedence | 50Ω |
| Connector Type | BNC |
| Antenna Gain | 7.5dBi |
