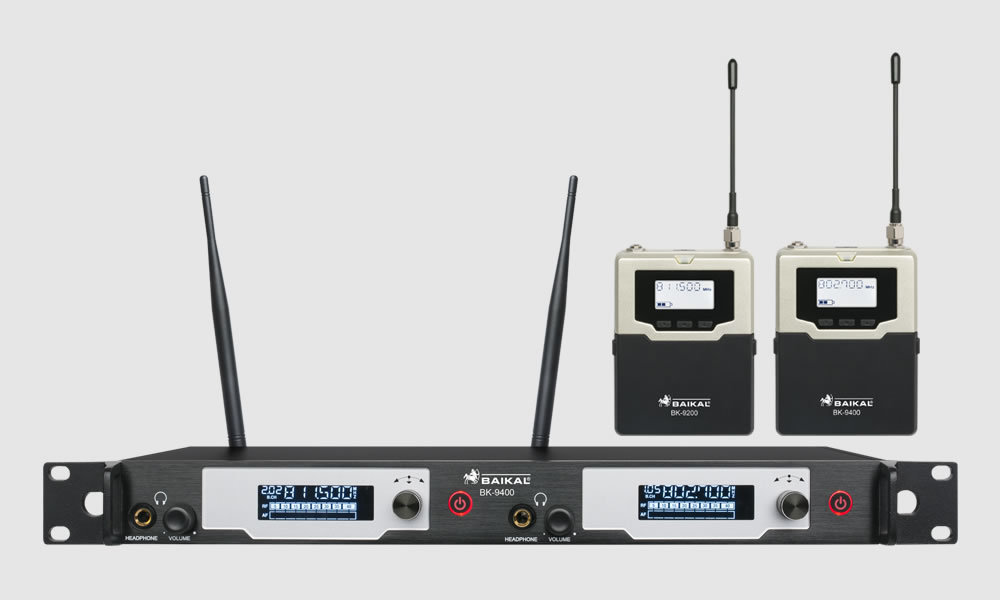

BK-9400 IN-EAR-CANALPHONES MONITORING

BK-9400 舞台返听系统

This wireless Ear-monitor System is used in stage performance and sound broadcast which can replace traditional complex sound monitoring equipment, achieve admirable listening effect.

With using the latest high frequency transmission and audio signal dynamic processing technology, also improve the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again.




SPECIFICATIONBK-9400 RECEIVER
Oscillation modePLL synthesized
Frequency rangeUHF500~950MHz
Frequency interval25MHz
Preset Channel96channels separately set 6 groups
Operate modemanual adjust
Receiving modesingle tuning
Frequency response80Hz~15KHz±3dB
Output power (32Ω)2X35mw@1KHZ
Earphone load impedance≥16Ω
Output socketφ3.5mm stereo earphone socket
Power boxbatteries AAX2


SPECIFICATIONBK-9400 TRANSMITTER
Case specificationstandard 1U
Case materialmetal panel
Frequency rangeUHF500~950MHz
Frequency interval25MHz
Preset Channel96channels separately set 6 groups
Transmit output power100mW(50Ω)
AF inputXLR, φ6.3mmjack
Earphone outputφ6.3mm stereophonic socket
Earphone load impedance≥16Ω
Current consumptionDC 12V/250mA
Antenna socketTNC socket (50Ω)
