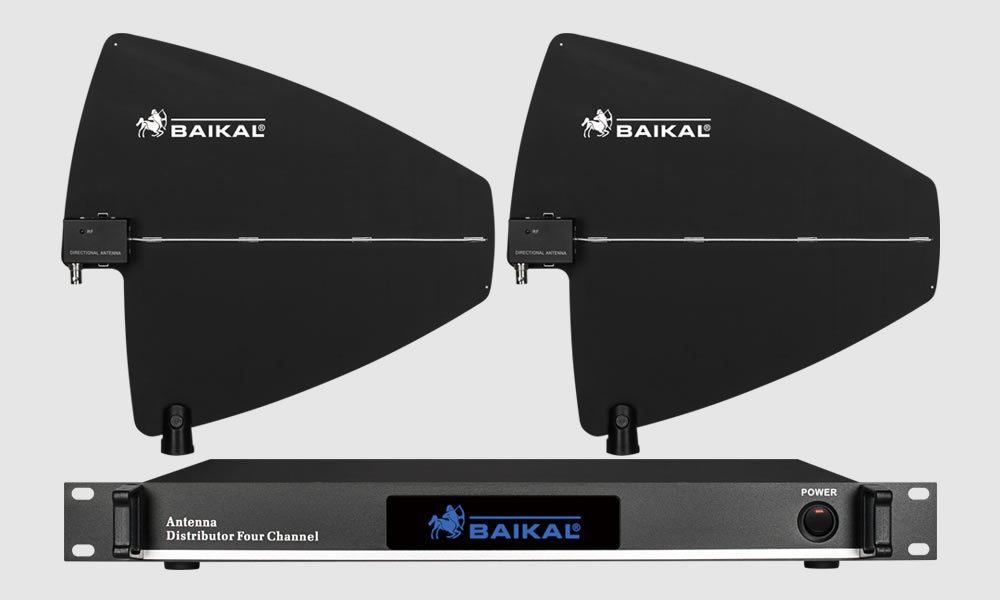

BK-890 ANTENNA DISTRIBUTOR SERIES

BK-890 天线放大器

The active directional antenna provides two-in-one style high gain receptivity for the wireless system within UHF500-950MHz and the receiving band will cover the whole UHF channel. The directive antenna design also provides ideal long range and steady reception for the UHF wireless system.




SPECIFICATIONBK-890
Antenna Typedirectional antenna
Receiver support4 sets
Frequency500MHz-950MHz
Gain6dB typical
Impedance50Ω
DirectionOval 180 degree typical
Direction PolarityVertical
Connecting terminalFixed right-angle BNC pcb jack
Weight326 gram
Dimension348mm×325mm×25mm
Structureglass copper and copper film coating
